Textile Cement customized air compressor series

Textile Cement customized air compressor series

Model NO.: Textile Cement customized air compressor series

Quantity:

Product Description

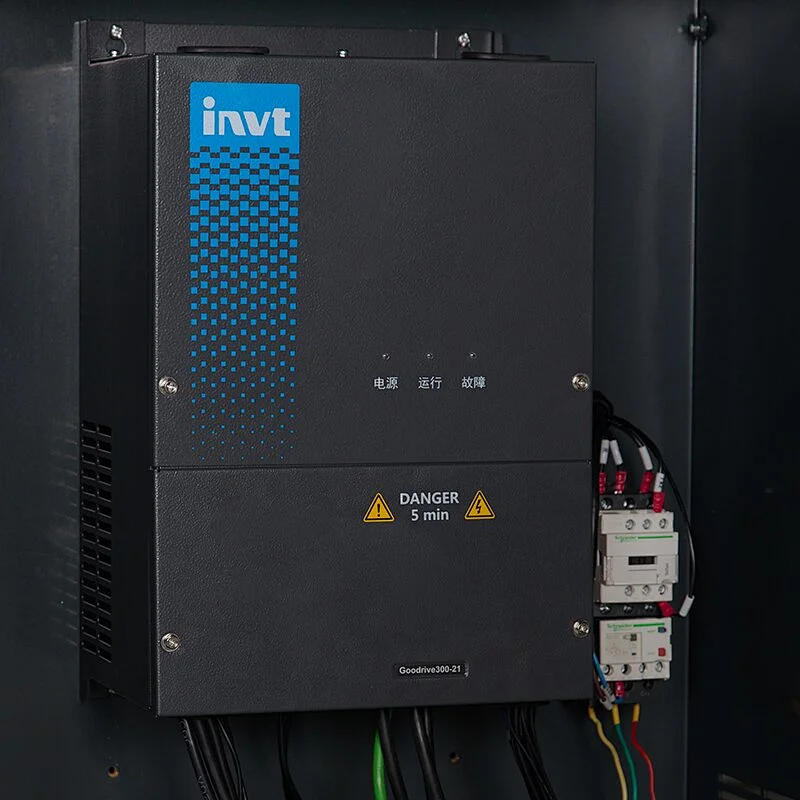

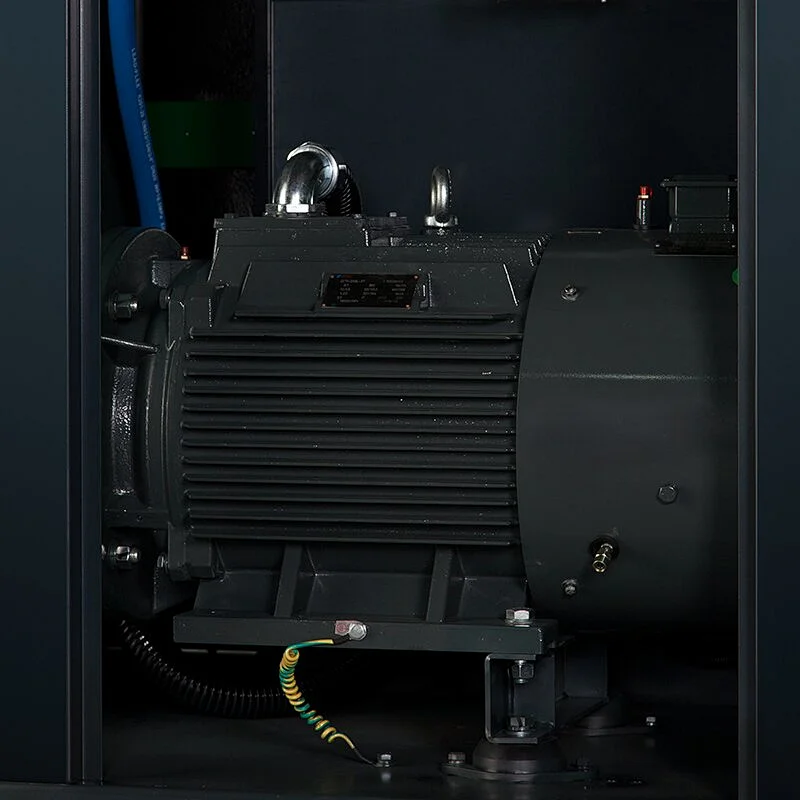

Low pressure+permanent magnet motor+inverter+one stage

Out pressure:1.5bar~4.0bar,air compressor flow range from 2.9m3/min~102.5m3/min,

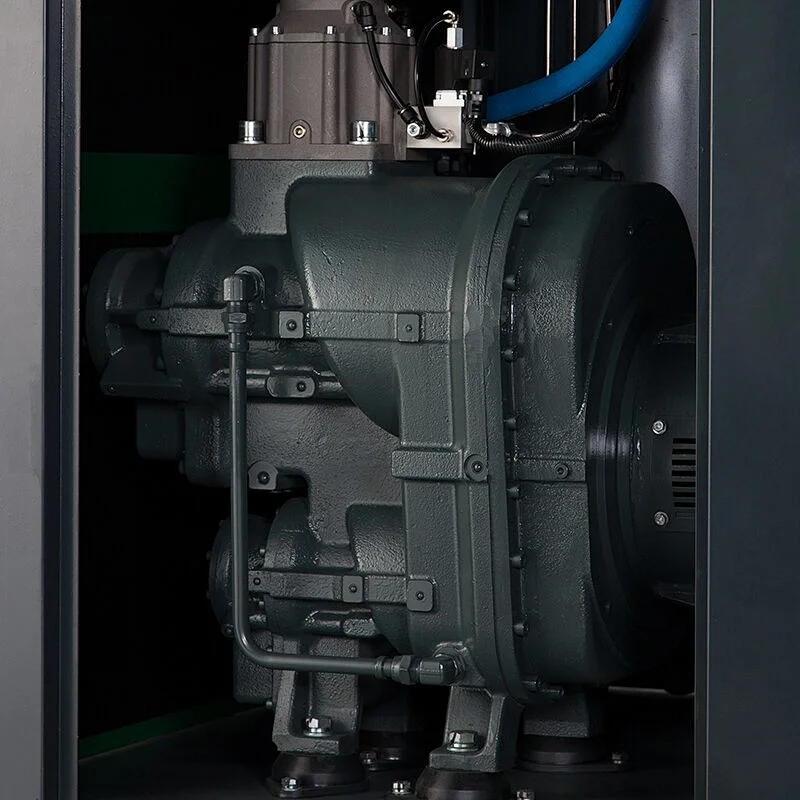

1、Using big rotor,low rotary speed to ensure the high performance of the machine;

2、Enlarging the oil&air separator system, to ensure the oil content of air export≦2ppm

3、The air from low pressure screw machine is clean,reducing the times to clean the nozzle of texturing machine,improving the quality of finished products.

Model	Maximum working pressure		Capacity (FAD)		Motor power		Mode of driving	Noise level	Outlet pipe dia.	Dimensions (mm)			Weight
	bar	psig	m3/min	cfm	kw	hp		db	inch	L	W	H	kg
SLVC-30A	1.5	22	3.2~12.8	113.0~451.8	30	40	Direct Driving	65	DN80	1950	1400	1800	1500
	2	29	2.9~11.2	102.4~395.4
	2.5	37	2.5~10.1	88.3~356.5
SLVC-37A	1.5	22	4.0~16.0	141.2~564.8	37	50	Direct Driving	65	DN100	2280	1700	1900	2000
	2	29	3.4~13.6	120.1~480.1					DN80	1950	1400	1800	1800
	2.5	37	3.1~12.2	109.4~430.7
	3	44	2.8~11.2	98.9~395.4
	4	58	2.5~10.1	88.3~356.6									1500
SLVC-45A	1.5	22	4.5~18.0	158.9~635.4	45	60	Direct Driving	65	DN100	2280	1700	1900	2200
	2	29	4.0~16.0	141.2~564.8
	3	44	3.5~13.8	123.6~487.2					DN80	1950	1400	1800	2000
	4	58	2.8~13.8	98.8~487.2					DN100				1800
SLVC-55A	1.5	22	5.8~23.1	204.8~815.5	55	75	Direct Driving	70	DN125	2420	1740	2000	3000
	2	29	5.2~21.0	187.1~741.3						2280	1700	1900
	2.5	37	4.8~19.3	169.5~681.3				65	DN100				2200
	3	44	4.4~17.6	155.4~621.3									3000
	4	58	4.0~16.0	141.2~564.8									2200
SLVC-75A	1.5	22	7.8~31.0	275.4~1094.3	75	90	Direct Driving	70	DN150	3100	1900	2050	3800
	2	29	7.1~28.0	250.7~988.4					DN125	2420	1740	2000
	2.5	37	6.3~25.3	222.4~893.1
	3	44	5.8~23.1	204.8~815.5
	4	58	5.2~21.0	183.6~741.3						2280	1700	1900	3000
SLVC-90A	1.5	22	9.8~39.0	346.0~1376.7	90	120	Direct Driving	75	DN150	3100	1900	2050	4200
	2	29	8.9~35.6	314.2~1256.7
	2.5	37	8.4~33.6	296.6~1186.1				70	DN125	2420	1740	2000
	3	44	7.7~30.8	271.8~1087.2									3800
	4	58	7.0~28.0	247.1~988.4
SLVC-110A	1.5	22	12.5~50.0	441.3~1765.0	110	150	Direct Driving	75	DN150	3300	2070	2250	5500
	2	29	11.2~45.0	395.4~1588.5
	2.5	37	9.8~39.0	346.0~1376.7						2900	1920	1860	5000
	3	44	9.2~36.8	324.8~1299.0				70	DN125
	3.5	52	8.4~33.6	296.6~1186.1
	4	58	7.6~30.5	268.3~1076.7									4200
SLVC-132A	1.5	22	13.8~55.0	487.2~1941.5	132	180	Direct Driving	75	DN150	3300	2070	2250	6000
	2	29	12.7~51.0	448.4~1800.3
	2.5	37	12.3~49.5	434.2~1747.4
	3	44	11.3~45.0	398.9~1588.5									5500
	3.5	52	9.7~39.0	342.4~1376.7						2420	1740	2000
	4	58	8.9~35.6	314.2~1256.7
SLVC-150A	1.5	22	15.1~60.6	533.1~2139.2	150	200	Direct Driving	80	DN200	4400	2300	2400	6500
	2	29	15.1~55.2	533.1~1948.6					DN150	3300	2070	2250
	2.5	37	13.7~55.0	483.7~1941.5
	3	44	12.4~49.5	437.8~1747.4									6000
	3.5	52	11.5~46.0	406.0~1623.8
	4	58	9.5~38.0	335.4~1341.4						2900	1920	1860
SLVC-160A	1.5	22	15.1~65.5	533.1~2312.2	160	215	Direct Driving	80	DN200	4400	2300	2400	6800
	2	29	16.3~60.6	575.4~2139.2
	2.5	37	15.1~60.6	533.1~2139.2						3300	2070	2250
	3	44	13.7~55.0	483.7~1941.5					DN150				6600
	3.5	52	12.5~50.0	441.3~1765.0
	4	58	11.4~45.5	402.5~1606.2
SLVC-185A	1.5	22	16.5~71.0	582.5~2506.3	185	250	Direct Driving	80	DN200	4400	2300	2400	7200
	2	29	16.3~70.6	575.4~2492.2
	2.5	37	16.3~65.0	575.4~2294.5
	3	44	15.1~60.6	533.1~2139.2					DN150	3300	2070	2250	7500
	3.5	52	13.8~55.0	487.2~1941.5
	4	58	12.5~50.0	441.3~1765.0
SLVC-200A	2.5	37	17.5~70.0	617.8~2471.0	200	270	Direct Driving	80	DN200	4400	2300	2400	7600
	3	44	16.3~65.2	575.4~2301.6									8000
	3.5	52	15.2~60.6	536.6~2139.2					DN150	3300	2070	2250
	4	58	13.8~55.0	487.2~1941.5
SLVC-220A	3	44	17.2~70.0	607.2~2471.0	220	300	Direct Driving	80	DN200	4400	2300	2400	8500
	3.5	52	16.3~65.2	575.4~2301.6
	4	58	15.2~60.5	536.6~2135.7					DN150	3300	2070	2250
SLVC-250A	3.5	52	16.3~70.0	575.4~2471.0	250	340	Direct Driving	80	DN200	4400	2300	2400	9000
	4	58	16.2~65.2	571.9~2301.6
SLVC-280A	4	58	16.7~70.0	589.5~2471.0	280	380	Direct Driving	90	DN200	4400	2300	2400	9500
SL-30A	2	29	11	388.3	30	40	Direct Driving	65	DN80	2090	1370	1785	1600
SL-37A	3	44	11.2	395.4	37	50	Direct Driving	65	DN80	2090	1370	1785
SL-45A	2	29	16	564.8	45	60	Direct Driving	65	DN100	2275	1580	1860	2350
SL-55A	2	29	21	741.3	55	75	Direct Driving	70	DN125	2377	1680	2100	2950
	3	44	16	564.8				65	DN100	2275	1580	1860	2350
SL-75A	2	29	28	988.4	75	90	Direct Driving	70	DN125	2900	1600	2100	3500
	3	44	21	741.3						2377	1680	2100	2950
SL-90A	2	29	36.5	1288.5	90	120	Direct Driving	75	DN125	2800	1600	2100	4000
	3	44	28	988.4				70					3500
SL-110A	2	29	45	1588.5	110	150	Direct Driving	75	DN150	3200	2200	2400	5800
	3	44	36.5	1288.5				70	DN125	2800	1600	2100	4000
SL-132A	2	29	49.5	1747.4	132	180	Direct Driving	75	DN150	3200	2200	2400	6200
	3	44	45	1588.5									5800
SL-150A	3	44	49.5	1747.4	150	200	Direct Driving	80	DN150	3200	2200	2400	6200
