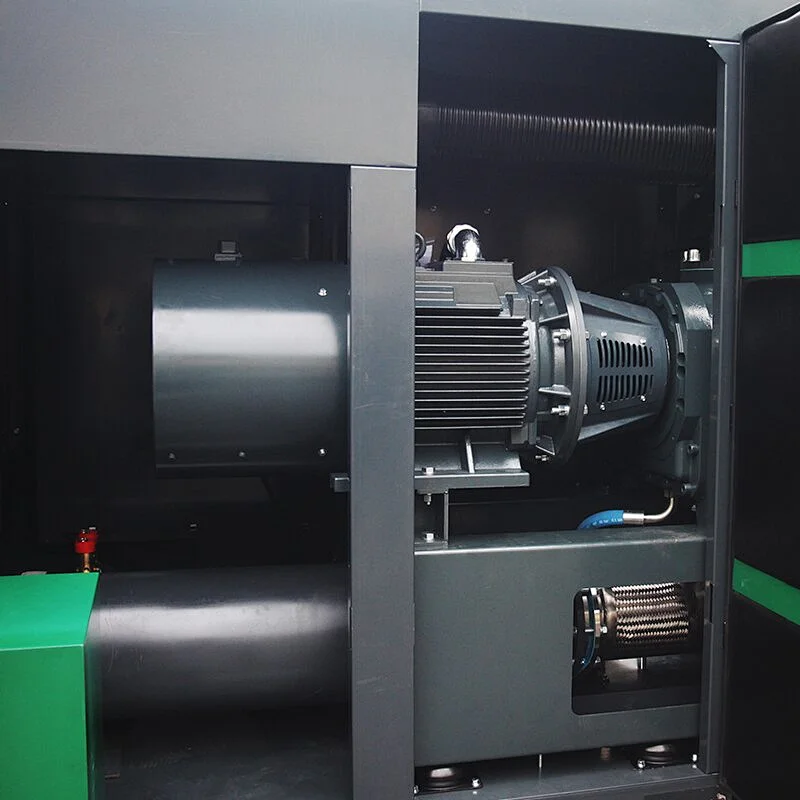

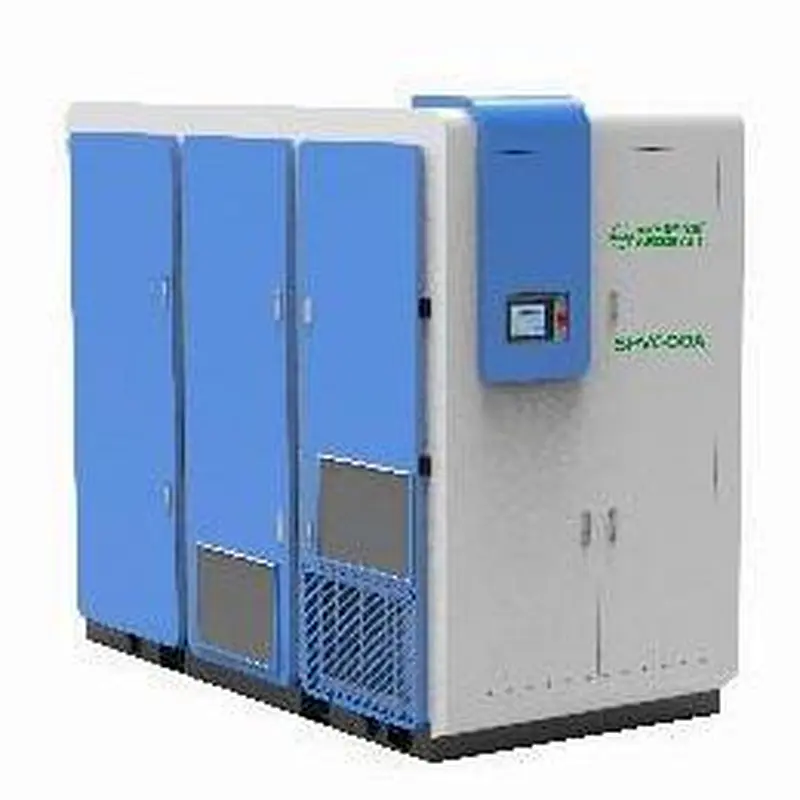

55KW air compressor

Model NO.: 55kw Oil Free Blower

Quantity:

Product Description

Machine parameters
Pressure range:0.4~2.0kpa
Power range:55kw
Product advantages:

Absolutely oil-free: dry double-screw technology, absolutely oil-free, to ensure the quality of 2，compressed air.

More energy-saving: high-efficiency screw profile, large air-end, saves on the aversage 30% compared to Roots blower
3，More practical: permanent magnet synchronous drive, higher efficiency, intelligent output, and wider adjustment range.
4，More intelligent: multiple protection, intelligent display and control + remote monitoring + Internet of Things, built-in intelligent flow meter and electricity meter, clearly display the operating conditions.
5，Low noise: The intake, exhaust and the whole machine are all designed with noise reduction, and the noise is lower.
6，Lower operation and maintenance costs.
7，The Oil free blower does not require oil-cooled cutting, lubrication, and is truly oil-free
8，The main structure of the Low noise oil free compressor is very compact. Compared with the screw air compressor, the number of parts and the consumable parts are also less.
9，We are a Shanghai oil-free air compressor manufacturer, focusing on the production of energy-saving air compressors to help enterprises increase efficiency
10，The 55KW air compressor cold cutting fan adopts an integrated centrifugal fan, which has low noise, high pressure head and large air volume to ensure sufficient cold cutting air volume.

Number	Model	Power (KW)	Working Pressure (bar)	Capacity (m3/min)	Outlet Size	Dimensions (mm)	Weight (KG)
1	SPVC-22A	22	0.4	23	DN150	237511751830	2000
2			0.6	18	DN150	237511751830	2000
3			0.8	14.5	DN150	237511751830	2000
4			1	11	DN150	237511751830	2000
5			0.4	28.5	DN150	237511751830	2300
6	SPVC-30A	30	0.6	25	DN150	237511751830	2300
7	SPVC-30A	30	0.8	22	DN150	237511751830	2300
8			1	16	DN150	237511751830	2300
9			0.4	39	DN150	240013501670	2600
10			0.6	32	DN150	240013501670	2600
11	SPVC-37A	37	0.8	25	DN150	237511751830	2600
12	SPVC-37A	37	1	22	DN150	240013501670	2600
13			1.2	18.5	DN150	237511751830	2600
14			1.5	15	DN150	240013501670	2600
15			0.4	47	DN150	240013501670	2800
16			0.6	37.5	DN150	240013501670	2800
17			0.8	32	DN150	240013501670	2800
18	SPVC-45A	45	1	26.5	DN150	240013501670	2800
19			1.2	22	DN150	237511751830	2800
20			1.5	17	DN150	240013501670	2800
21			2	10.5	DN150	237511751830	2800
22			0.4	61	DN200	310016102320	3300
23			0.6	51.5	DN150	240013501670	2900
24			0.8	42	DN150	240013501670	2900
25	SPVC-55A	55	1	36	DN150	240013501670	2900
26			1.2	30	DN150	240013501670	2900
27			1.5	25	DN150	240013501670	2900
28			2	13.9	DN150	237511751830	2850
29			0.4	78	DN300	325018602300	4000
30			0.6	67	DN200	310016102320	3300
31			0.8	58	DN200	310016102320	3300
32	SPVC-75A	75	1	50	DN200	291016752150	3300
33			1.2	42	DN200	291016752150	3300
34			1.5	32	DN150	240013501670	3000
35			2	21.9	DN150	237511751830	3000
36			0.4	98	DN300	325018602300	4200
37			0.6	78	DN300	325018602300	4200
38			0.8	67	DN300	325018602300	4200
39	SPVC-90A	90	1	63	DN200	310016102320	3400
40			1.2	53	DN200	291016752150	3400
41			1.5	44	DN200	291016752150	3400
42			2	28	DN150	240013501670	3200
43			0.4	102	DN300	325018602300	4400
44			0.6	100	DN300	325018602300	4400
45			0.8	78	DN300	325018602300	4400
46	SPVC-110A	110	1	68	DN200	310016102320	3600
47			1.2	62	DN200	310016102320	3600
48			1.5	50	DN200	291016752150	3400
49			2	34.6	DN150	240013501670	3300
50			0.6	108	DN300	325018602300	4600
51			0.8	98	DN300	325018602300	4600
52	SPVC-132A	132	1	89	DN300	325018602300	4600
53			1.2	70	DN300	325018602300	4600
54			1.5	63	DN200	310016102320	3700
55			2	41.1	DN150	240013501670	3400
56			0.8	108	DN300	325018602300	4700
57	SPVC-160A	160	1	98	DN300	325018602300	4700
58			1.2	90	DN300	325018602300	4700
59			1.5	70	DN300	325018602300	4700
60			1	108	DN300	325018602300	5000
61	SPVC-185A	185	1.2	98	DN300	325018602300	4900
62			1.5	82	DN300	325018602300	4900
63			1.2	108	DN300	325018602300	5200
64	SPVC-200A	200	1.5	98	DN300	325018602300	5000
65			2	68.5	DN300	325018602300	5000
66	SPVC-220A	200	2	72	DN300	325018602300	5400
67	SPVC-250A	250	2	82	DN300	325018602300	5600

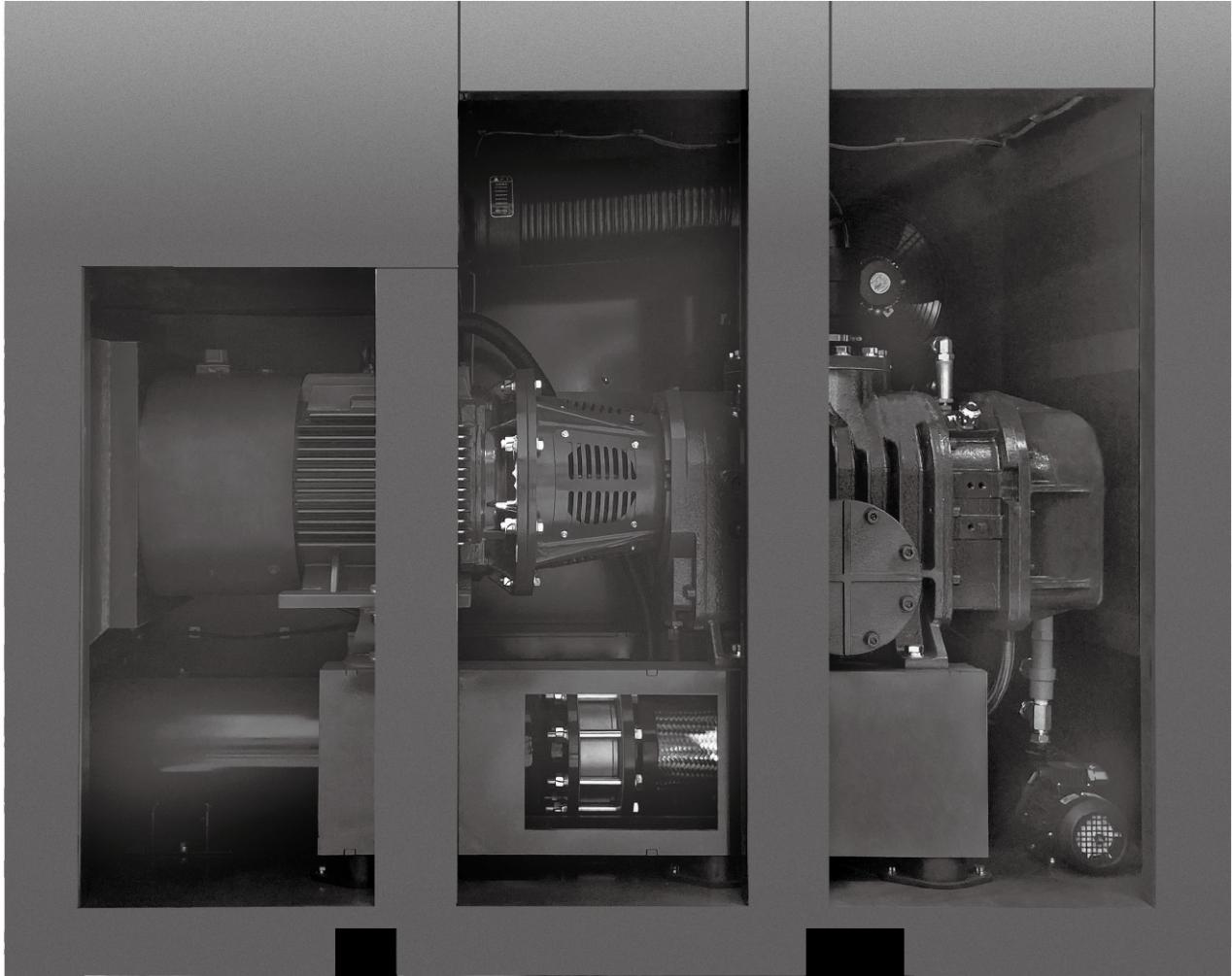

Oil Free Screw BlowerFeatures and Advantages

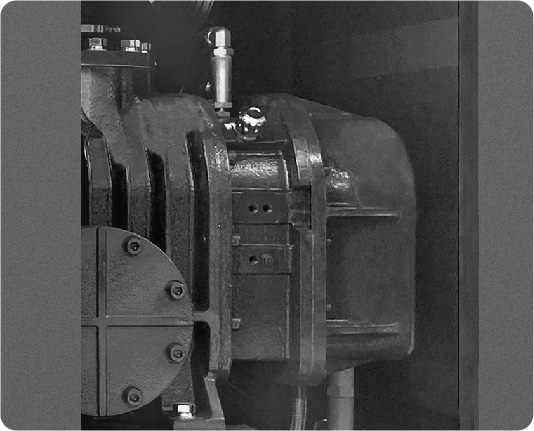

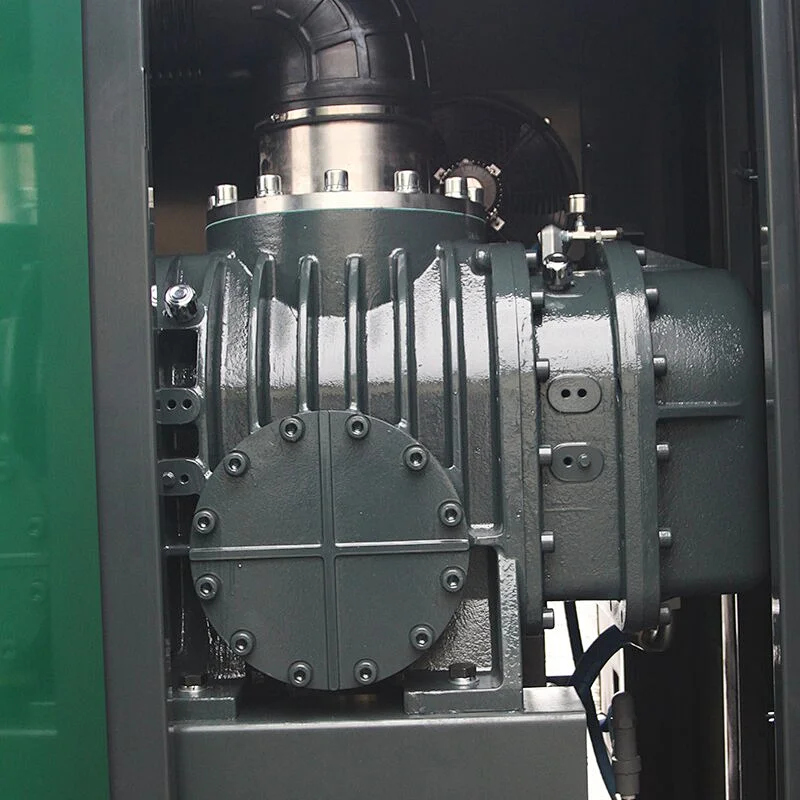

1，Adopt dry type oil-free compression Air end, the compression process is 100% oil-free
■ Screw type rotors with super-coating, high compression accuracy, low noise and long life
■ Compared with roots blower, the efficiency is average increased by 20-30%

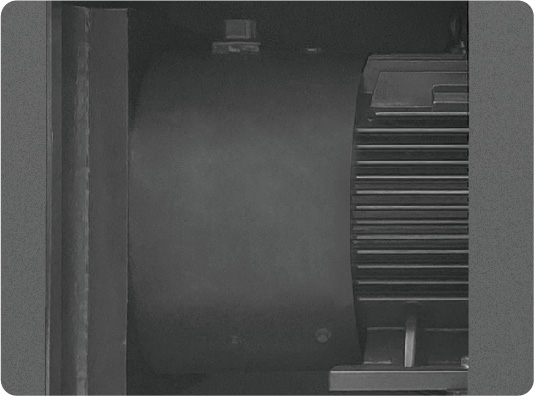

2，Motor adopt IE4 efficiency permanent magnet motor, protection class IP54 / 55 frequency, average savings of 3-5%
3，■ Inlet and exhaust side silencer design, low running noise
■ The air intake adopts a sound-absorbing design, which minimizes the noise at the air intake

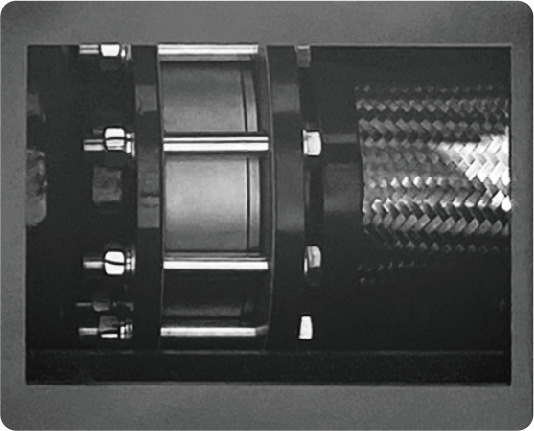

■ Using anti exhaust muffler structure, no resistance, good noise reduction effect
4■ VSD Control zThe vector inverter control system is used to precisely control the load according to the air demand and constant output pressure.
■ VSD start, Low starting current, protecting electrical components
5，■ Intelligent controller, touch screen, all operating information display, safe and intelligent, 24 hours unattended operation
■ Industry 4.0 system, can view the operational status of equipment at any time on a mobile device or computer

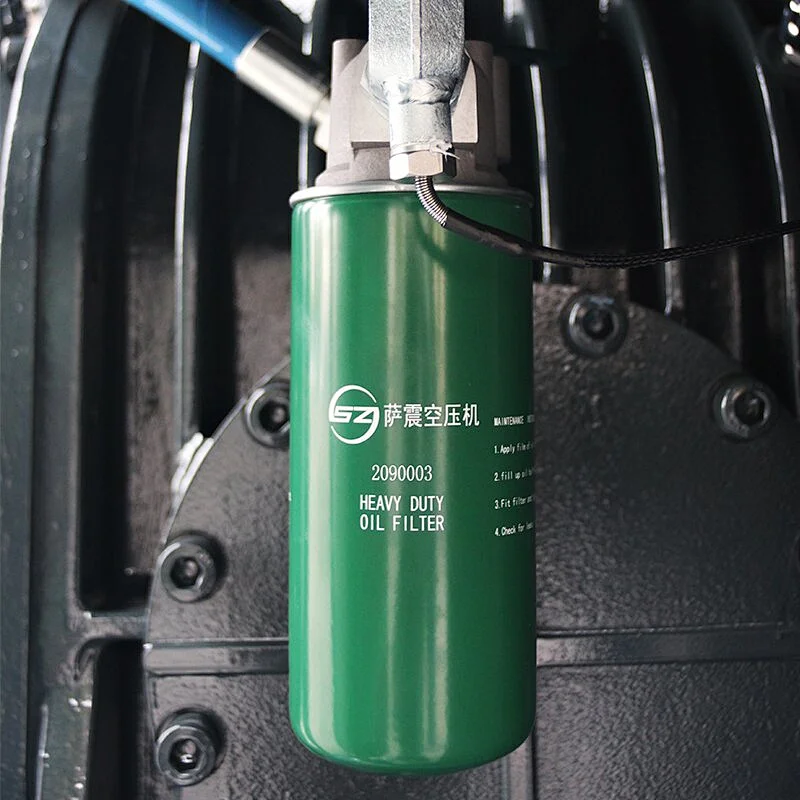

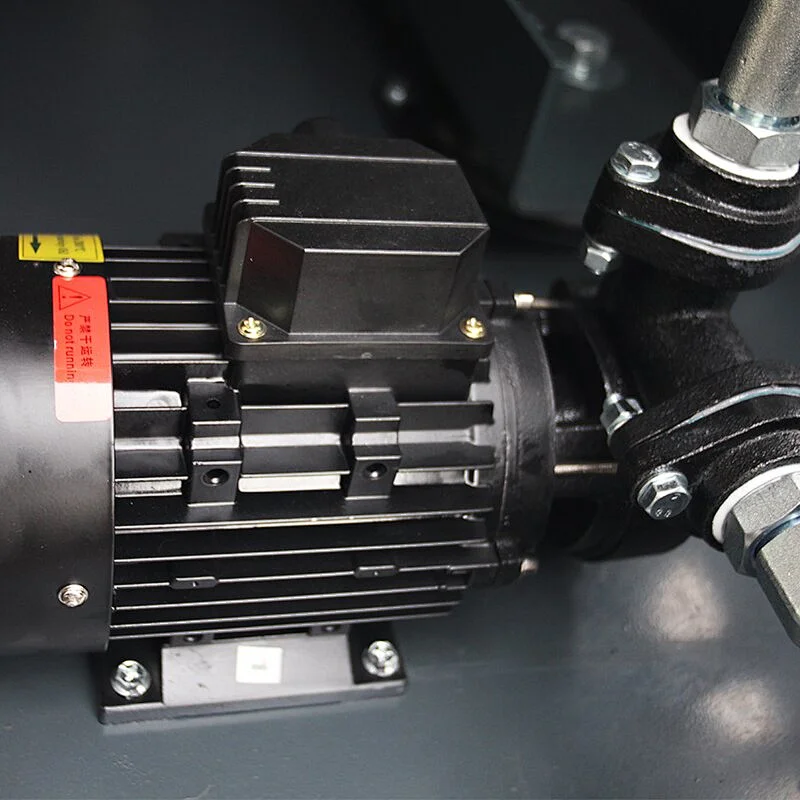

6,Independent air end gear and bearing lubrication systems, double-pump design to ensure reliable long-term operation of the machine.

Energy saving and high eﬃciency
The high-e ciency permanent magnet motor and the high-e ciency ternary fluid impeller are directly driven, the transmission structure is greatly simplified, and the energy consumption is reduced by 30%-40% compared with the traditional roots blower
Low vibration and low noise
In order to ensure the needs of humanized operation, Baobang Electric adopts the unique secondary dynamic balance vibration reduction design and chassis sound insulation technology, and the fan noise is controlled at 80dB
Intelligent control
Based on the ECC remote control system independently designed by Sazhen Electric, it can realize online monitoring of fan status, intelligent control and remote maintenance, and remote debugging.
Easy maintenance
Directly connected high-speed fans do not require foundation and are easy to install; daily operations only need to replace filters, which greatly reduces maintenance workload.
It adopts advanced magnetic bearing, ternary ow turbine, high-speed permanent magnet synchronous motor, high-speed frequency conversion speed regulation, intelligent monitoring and control and other core technologies. When starting, it suspends rst and then rotates. There is no friction and no lubrication. The turbine and the rotor are directly connected and drive Zero loss. The noise is as low as 80 decibels and is widely used in sewage treatment, aquaculture, steel, cement, food, brewing, textile, petrochemical and other elds.
