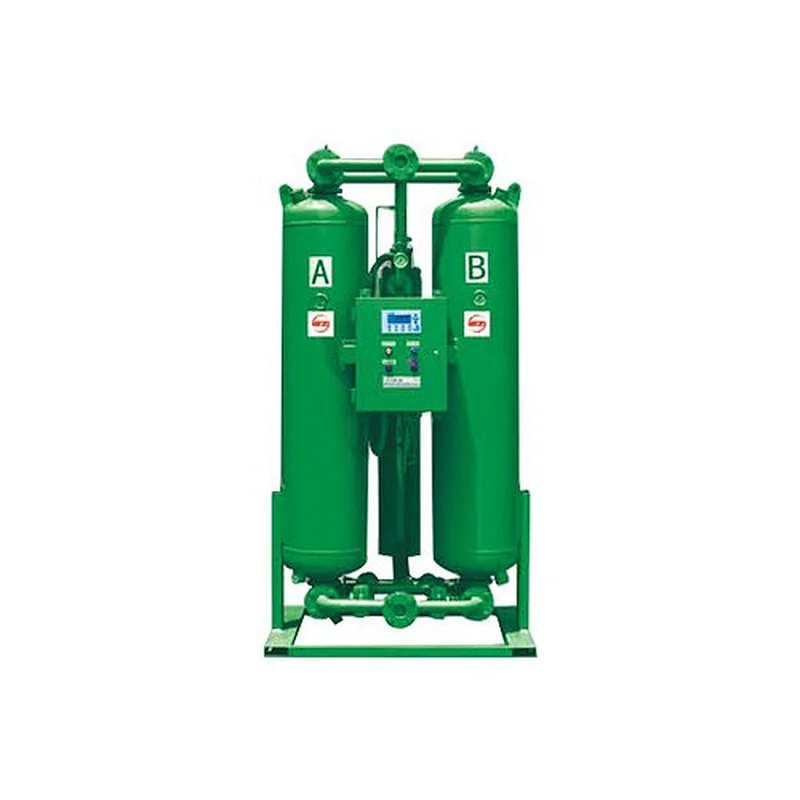

Introduction of Desiccant dryer
the control system adopts single-clip microcomputer program for automatic control,stabel and reliabel performance (PLC control optional)
With valve switch automatic display function,friendly man-machine interface, simple operation,easy routine maintenance.
Automatic alarm device,the intake air temperature is too high alarm,the intake pressure is too low alarm,heating temperature is too high alarm(micro heat regeneration type)
According to the actual load and temperature,adjustable regeneration gas consumption ratio,saving renewable energy consumption.
Can choose to switch the actual cycle to meet the demand for finished dew point.
Mouth solenoid valve reliable performance, modular design,and with action instructions,easy maintenance.
Air control dust filter,to prevent dust into the pneumatic control components,reducing valve failure rate.
High quality and efficient heater(micro heat regeneration type).
Pneumatic valve control and other electromagnetic valve control comparison,longer life,to ensure the long-term stable operation of the dryer.
Stainless steel material diffuser,the air from the stability,diffusion,filtration and other functions.
Reliable one-way valve.
FEATURES AND ADVANTAGES
Introduction of Desiccant dryer
1、the control system adopts single-clip microcomputer program for automatic control,stabel and reliabel performance (PLC control optional)
2、With valve switch automatic display function,friendly man-machine interface, simple operation,easy routine maintenance.
3、Automatic alarm device,the intake air temperature is too high alarm,the intake pressure is too low alarm,heating temperature is too high alarm(micro heat regeneration type)
4、According to the actual load and temperature,adjustable regeneration gas consumption ratio,saving renewable energy consumption.
5、Can choose to switch the actual cycle to meet the demand for finished dew point.
6、Mouth solenoid valve reliable performance, modular design,and with action instructions,easy maintenance.
7、Air control dust filter,to prevent dust into the pneumatic control components,reducing valve failure rate.
8、High quality and efficient heater(micro heat regeneration type).
9、Pneumatic valve control and other electromagnetic valve control comparison,longer life,to ensure the long-term stable operation of the dryer.
10、Stainless steel material diffuser,the air from the stability,diffusion,filtration and other functions.
11、Reliable one-way valve.

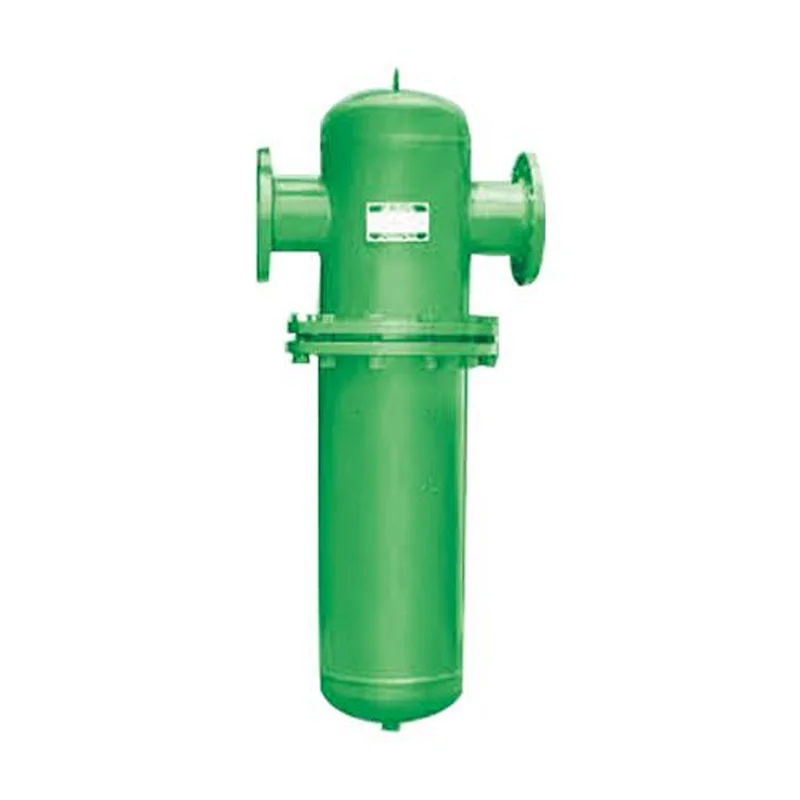

Suitable for filtering large amounts of liquid and 3 microns of aggregates (5ppm maximum residual oil content)
Two-stage Filtration
The first level -two stainless steel tubes,for 10 micron mechanical separation
The second stage - the deep Fibrous
Media Filters out 3 microns of solid and liquid particles.
Suitable for filtering large amounts of liquid and 1 micron size agglomerates (1.0 ppm maximum residual oil content)
Inside /Outside the Filter are Anti-corrosion
Two-stage Filtration
The first level - fiber media and media Filter alternately stacked, filter out the larger particles.
The second stage - multi-layer epoxy resin bonded mixed Fiber medium, coalescence oil mist and filter solid particles.
Suitable for removing large amounts of liquid and 001 microns of aggregates (0.01 ppm maximum residual oil content)
Inside /Outside the Filter are Anti-corrosion
• The first level - multi-layer fiber media and media filter， filter out the larger particles, in the air into the second stage before the filter pre－filter
• The second stage - multi-layer adhesive mixed fiber medium，filter out small aggregates.
Outer Film Closed Foam Sleeve
Suitable for Filtering out the activated carbon is usually absorbable oil vapor and hydrocarbon vapor, can be removed as small as 0.01 micron solid particles (0.003ppm maximum residual oil content)
Inside / Outside the Filter are Anti-corrosion Two-stage Filtration
The first level - very fine activated carbon powder stability layer, can filter out most of the oil vapor.
The second level - multi-layer fiber medium, bonded micro－fine filter activated carbon powder can filter the residual oil vapor.
Multilayer fine media to prevent contaminants from wandering external coating closed foam sleeve to prevent fiber wandering In the rated operating conditions, the design life of up to 1000 hours.
Suitable for agglomeration of small water vapor and 0il mist, can filter up to 0.01 microns of aggregates (0.001 ppm maximum residual oil content)
• The first level - the coating closed foam sleeve, pre-filtration and air dispersion.
• The second level - multi - layer matrix mixed fiber medium，filter out very small aggregates.
the control system adopts single-clip microcomputer program for automatic control,stabel and reliabel performance (PLC control optional)
With valve switch automatic display function,friendly man-machine interface, simple operation,easy routine maintenance.
Automatic alarm device,the intake air temperature is too high alarm,the intake pressure is too low alarm,heating temperature is too high alarm(micro heat regeneration type)
According to the actual load and temperature,adjustable regeneration gas consumption ratio,saving renewable energy consumption.
Can choose to switch the actual cycle to meet the demand for finished dew point.
Mouth solenoid valve reliable performance, modular design,and with action instructions,easy maintenance.
Air control dust filter,to prevent dust into the pneumatic control components,reducing valve failure rate.
High quality and efficient heater(micro heat regeneration type).
Pneumatic valve control and other electromagnetic valve control comparison,longer life,to ensure the long-term stable operation of the dryer.
Stainless steel material diffuser,the air from the stability,diffusion,filtration and other functions.
Reliable one-way valve.
| Water-cooled rear cold cutter | |||||||
| Intake pressure：0.7~ I.OMpa | Outlet temperature：^45°C | ||||||
| Intake air temperature：580°C | Cooling water inlet temperature | 2-32℃ | |||||
| model | Air handling capacity | Cold cutting water circulation | Air Connection diameter | Cold cut water nozzle diameter | Dimensions(mm) | weight(kg) | |
| (Nm3/min) | (m'/min) | diameter | high 1 | ||||
| SZL-1W | 1.2 | 0.5 | G1" | G1" | 108 | 1100 | 36 |
| SZL-2W | 2.4 | 1 | G1" | G1" | 108 | 1100 | 42 |
| SZL-3W | 3.8 | 1.6 | G1" | G1" | 108 | 1100 | 52 |
| SZL-6W | 7.2 | 1.8 | G1.5" | G1" | 140 | 1200 | 65 |
| SZL-8W | 8.5 | 2.4 | G1.5" | G1" | 140 | 1300 | 98 |
| SZL-10W | 11 | 3 | G2" | G1.5" | 140 | 1400 | 110 |
| SZL-13W | 13.5 | 3 | G2" | G1.5" | 159 | 1700 | 156 |
| SZL-14W | 15.2 | 4 | G2.5" | G1.5" | 159 | 1750 | 237 |
| SZL-15W | 18.5 | 4.5 | DN65 | G2" | 159 | 1800 | 319 |
| SZL-20W | 22 | 6 | DN80 | G2" | 219 | 1800 | 415 |
| SZL-30W | 35 | 9 | DN100 | G2" | 219 | 1800 | 460 |
| SZL-40W | 45 | 12 | DN100 | G2" | 325 | 2000 | 532 |
| SZL-50W | 55 | 13 | DN125 | G2" | 325 | 2200 | 579 |
| SZL-60W | 65 | 15 | DN125 | G2" | 377 | 2000 | 635 |
| SZL-70W | 75 | 18 | DN150 | G2.5" | 377 | 2300 | 690 |
| SZL-80W | 85 | 21 | DN150 | G2.5" | 426 | 2000 | 830 |
| SZL-100W | 110 | 24 | DN150 | G3" | 426 | 2500 | 890 |
FEATURES AND ADVANTAGES
Introduction of Desiccant dryer
1、the control system adopts single-clip microcomputer program for automatic control,stabel and reliabel performance (PLC control optional)
2、With valve switch automatic display function,friendly man-machine interface, simple operation,easy routine maintenance.
3、Automatic alarm device,the intake air temperature is too high alarm,the intake pressure is too low alarm,heating temperature is too high alarm(micro heat regeneration type)
4、According to the actual load and temperature,adjustable regeneration gas consumption ratio,saving renewable energy consumption.
5、Can choose to switch the actual cycle to meet the demand for finished dew point.
6、Mouth solenoid valve reliable performance, modular design,and with action instructions,easy maintenance.
7、Air control dust filter,to prevent dust into the pneumatic control components,reducing valve failure rate.
8、High quality and efficient heater(micro heat regeneration type).
9、Pneumatic valve control and other electromagnetic valve control comparison,longer life,to ensure the long-term stable operation of the dryer.
10、Stainless steel material diffuser,the air from the stability,diffusion,filtration and other functions.
11、Reliable one-way valve.
Suitable for filtering large amounts of liquid and 3 microns of aggregates (5ppm maximum residual oil content)
Two-stage Filtration
The first level -two stainless steel tubes,for 10 micron mechanical separation
The second stage - the deep Fibrous
Media Filters out 3 microns of solid and liquid particles.
Suitable for filtering large amounts of liquid and 1 micron size agglomerates (1.0 ppm maximum residual oil content)
Inside /Outside the Filter are Anti-corrosion
Two-stage Filtration
The first level - fiber media and media Filter alternately stacked, filter out the larger particles.
The second stage - multi-layer epoxy resin bonded mixed Fiber medium, coalescence oil mist and filter solid particles.
Suitable for removing large amounts of liquid and 001 microns of aggregates (0.01 ppm maximum residual oil content)
Inside /Outside the Filter are Anti-corrosion
• The first level - multi-layer fiber media and media filter， filter out the larger particles, in the air into the second stage before the filter pre－filter
• The second stage - multi-layer adhesive mixed fiber medium，filter out small aggregates.
Outer Film Closed Foam Sleeve
Suitable for Filtering out the activated carbon is usually absorbable oil vapor and hydrocarbon vapor, can be removed as small as 0.01 micron solid particles (0.003ppm maximum residual oil content)
Inside / Outside the Filter are Anti-corrosion Two-stage Filtration
The first level - very fine activated carbon powder stability layer, can filter out most of the oil vapor.
The second level - multi-layer fiber medium, bonded micro－fine filter activated carbon powder can filter the residual oil vapor.
Multilayer fine media to prevent contaminants from wandering external coating closed foam sleeve to prevent fiber wandering In the rated operating conditions, the design life of up to 1000 hours.
Suitable for agglomeration of small water vapor and 0il mist, can filter up to 0.01 microns of aggregates (0.001 ppm maximum residual oil content)
• The first level - the coating closed foam sleeve, pre-filtration and air dispersion.
• The second level - multi - layer matrix mixed fiber medium，filter out very small aggregates.
